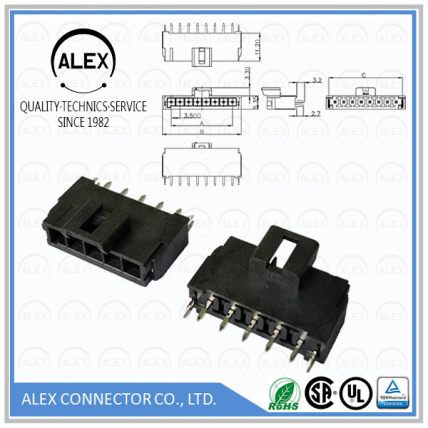

Category : Wire to Board
Pitch : .138"(3.50mm)
Series : WTB
File : Download
Product Features
◆2 ~ 8 circuits available
◆Housing Material: LCP UL94V-0 Black/Natural
◆PIN Material: High conductivity copper alloy, Tin-plated, SQ0.64
◆Mates with ALEX 3521T Terminal/3522-xxS Housing
Series Specifications
◆Current rating: 14A at 16AWG
◆Voltage rating: 400V AC (RMS) or 400V DC Max.
◆Contact resistance: 10mΩ Max.
◆Insulation resistance: 1000MΩ Min.
◆Dielectric withstanding voltage: 1800V AC/minute
◆Ambient temperature range: -40°C ~ 105°C
