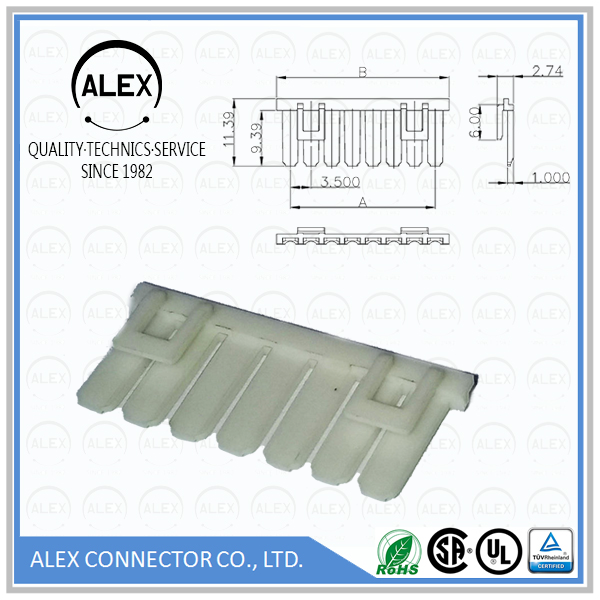

3522C-xx
3522C-xx

详细介绍

Category : Wire to Board

Pitch : .138"(3.50mm)

Series : WTB

File : Download

Product Features

◆2 ~ 8 circuits available

◆Material: PA66 UL94V-0 Black/Natural

◆Mates with ALEX 3522-xx-TPA、3522-xxS-TPA Housings

Series Specifications

◆Current rating: 14A at 16AWG

◆Voltage rating: 400V AC (RMS) or 400V DC Max.

◆Contact resistance: 10mΩ   Max.

◆Insulation resistance: 1000MΩ   Min.

◆Dielectric withstanding voltage: 1800V AC/minute

◆Ambient temperature range: -40°C ~ 105°C
