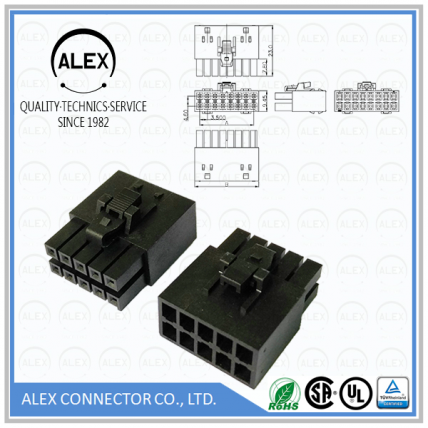

Category : Wire to Board

Pitch : .138＂(3.50mm)

Series : WTB

File : Download

Product Features

◆4 ~ 16 circuits available

◆Material: PA4T UL94V-0 Black/Natural

◆Accepts ALEX 3521T terminal

◆Mates with ALEX 3523-xx, 3524-xx headers

Series Specifications

◆Current rating: 14A at 16AWG

◆Voltage rating: 400V AC (RMS) or 400V DC Max.

◆Contact resistance: 10mΩ   Max.

◆Insulation resistance: 1000MΩ   Min.

◆Dielectric withstanding voltage: 1800V AC/minute

◆Ambient temperature range: -40°C ~ 105°C
