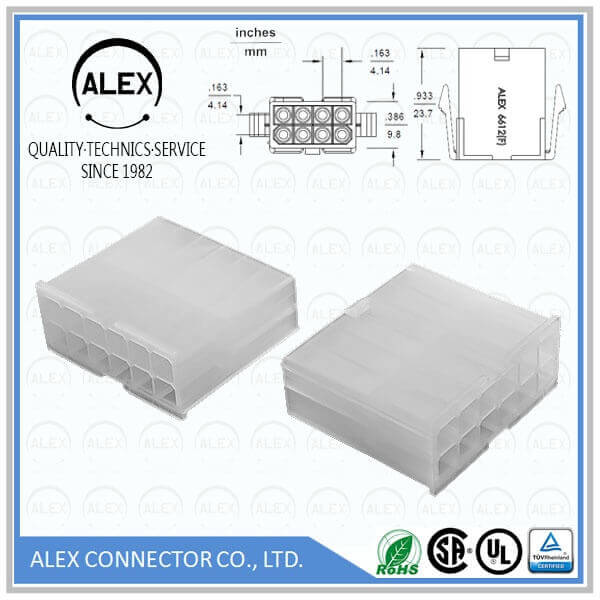

Category : Wire to Wire

Pitch : .163＂(4.14mm)

Series : WTW4141

File : Download

Product Features

◆ 1 2, 3, 4, 6, 8, 9, 10, 12, 15, 16
　circuits available
◆ Material: UL 94V-2 nylon 66
◆ Accepts ALEX 7003T, 7004T Terminals
◆ Integrally molded polarization
◆ Positive locking
◆ Standard color: Nature
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 300V AC, DC
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25°C ~ +90°C
