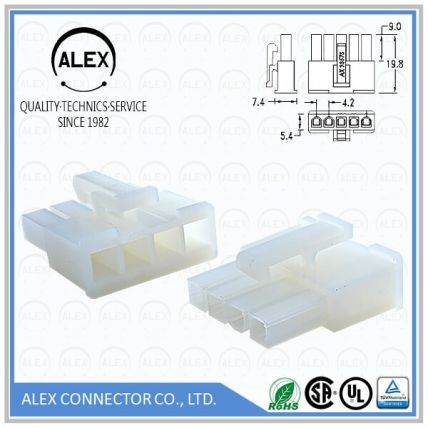

Category : Wire to Wire

Pitch : .165＂(4.20mm)

Series : WTW420H

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-2 nylon66
◆ With Mtg. Ears
◆ Accepts ALEX 4257T Terminal
◆ Mates with ALEX 9357-xxS Housing
◆ UL File No.: E114003

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
