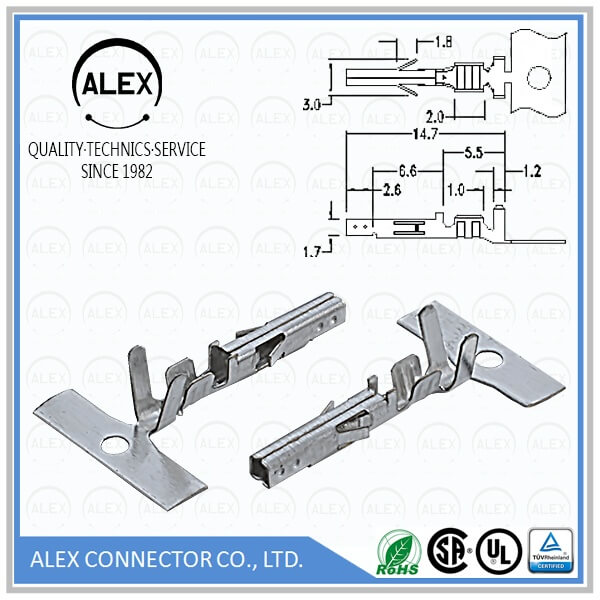

Category : Wire to Wire

Pitch : .165＂(4.20mm)

Series : WTW420H

File : Download

Product Features

◆ High Current and High Density
◆ Material: Brass
◆ Finished: Tin-plated
◆ Thickness: 0.20mm
◆ Wire range: #16 ~ #28 AWG
◆ Crimp resistance: 5mΩ Max.
◆ Used in ALEX 9358-xx, 9358-xxS, 9362-N
　Housings
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
