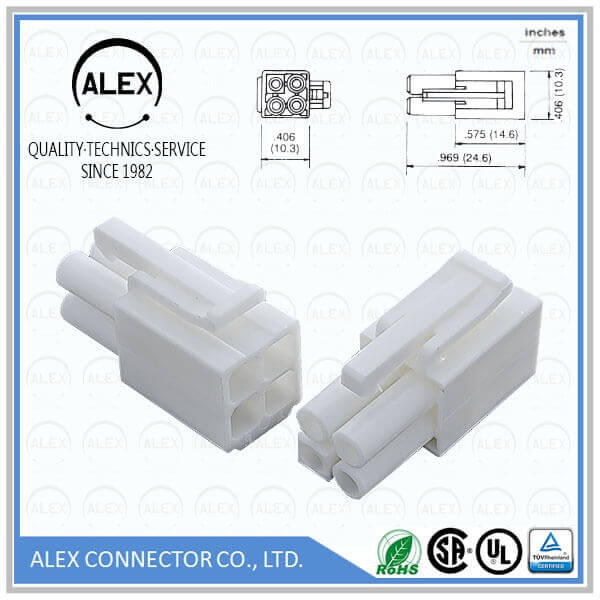

6613-04VM1
6613-04VM1

详细介绍

Category : Wire to Wire

Pitch : .177"(4.50mm)

Series : WTW4501

File : Download

Product Features

◆ 2,3,4,6,9,12,15 circuit
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 7007T, 7008T terminals
◆ Integrally molded polarization
◆ Positive locking
◆ Standard color: Nature
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 10A (2P,3P,4P),
 8A (6P), 6A (9P,12P,15P)
◆ Voltage rating: 300V AC, DC
◆ Contact resistance: Initial value/7mΩ Max.
 After environmental testing/10mΩ Max.
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric Withstanding Voltage:
 1500V AC/minute
◆ Ambient temperature range: -25°C ~ +90°C
 (including temperature rise)
◆ Applicable wires: AWG #20 ~ #16
◆ Applicable panel thickness:
 0.031"(0.8mm) ~ 0.079"(2.0mm)
