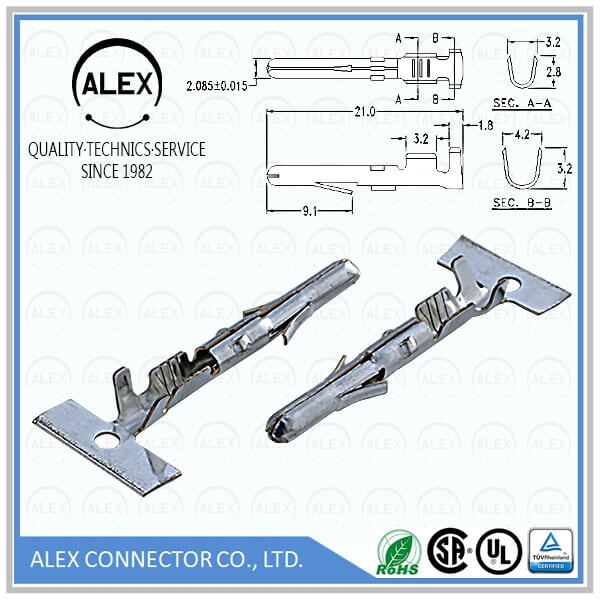

Category : Wire to Wire

Pitch : .200"(5.08mm)

Series : WTW508I

File : Download

Product Features

◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated
◆ For use with AWG #16 ~ #22 Wire
◆ Used in ALEX 5050-N Housing
◆ Thickness: 0.30mm
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 7A max.
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: -40 ~ +105°C
 (including temperature rise)
