Category : Wire to Wire

Pitch : .244＂(6.20mm)

Series : WTW6201

File : Download

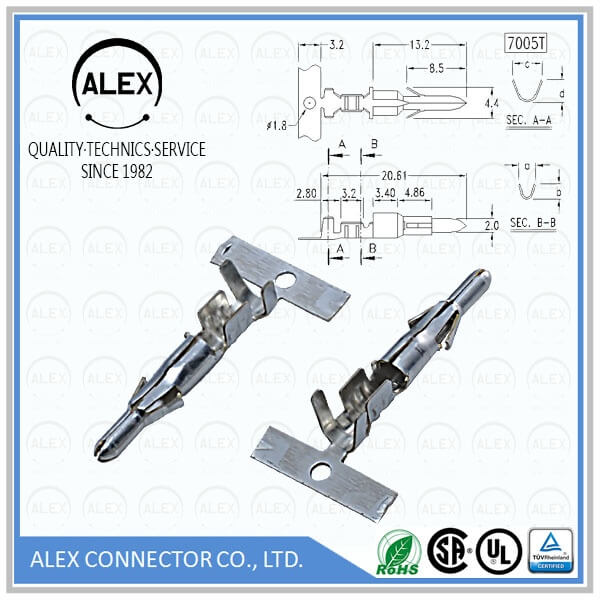

Product Features

◆ Material: Brass
◆ Finished: Tin-plated
◆ Used in ALEX 6420 housing
◆ Thickness: 0.25mm
◆ 7006T-6223 use with 14-20 AWG wire
◆ 7006T-9223 use with 20-24 AWG wire
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 10A (1P,2P,3P,4P),
　8A (6P), 6A (9P,12P,15P)
◆ Voltage rating: 300V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric Withstanding Voltage:
　1500V AC/minute
◆ Ambient temperature range: -25°C ~ +90°C
　(including temperature rise)
◆ Applicable wires: AWG #24 ~ #16
◆ Applicable panel thickness:
　0.031"(0.8mm) ~ 0.079"(2.0mm)
