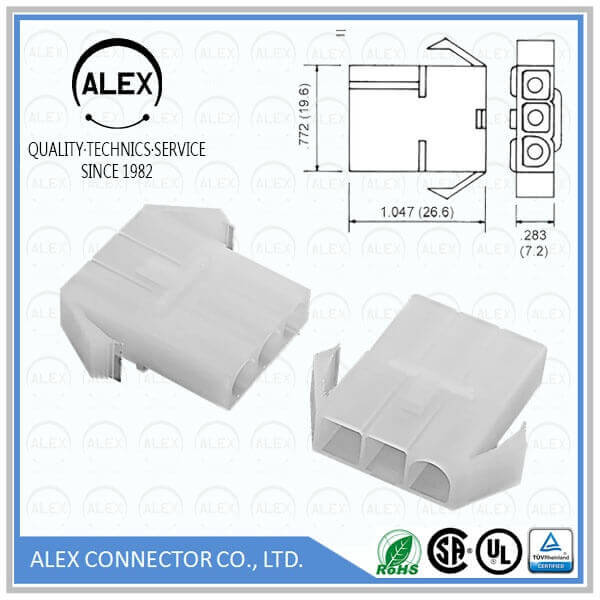

Category : Wire to Wire

Pitch : .244＂(6.20mm)

Series : WTW6201

File : Download

Product Features

◆ 1,2,3,4,6,9,12,15 circuit
◆ Material: UL 94V-0 and 94V-2 nylon 66
◆ Accepts ALEX 7005T, 7006T terminals
◆ Integrally molded polarization
◆ Positive locking
◆ With Mtg. Ears
◆ Standard color: Nature
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 10A (1P,2P,3P,4P),
　8A (6P), 6A (9P,12P,15P)
◆ Voltage rating: 300V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric Withstanding Voltage:
　1500V AC/minute
◆ Ambient temperature range: -25°C ~ +90°C
　(including temperature rise)
◆ Applicable wires: AWG #24 ~ #16
◆ Applicable panel thickness:
　0.031"(0.8mm) ~ 0.079"(2.0mm)
