Category : Wire to Wire

Pitch : .264＂(6.70mm)

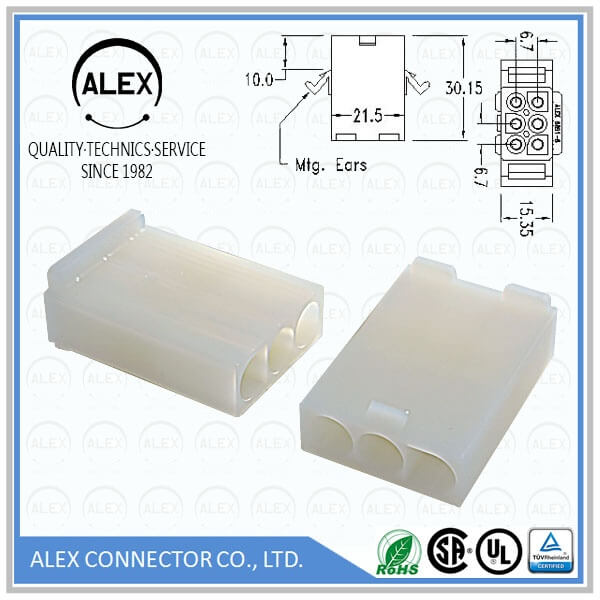

Series : WTW670K

File : Download

Product Features

◆ 1, 2, 3, 4, 6, 9, 12, 15 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Accepts ALEX 80T, 81T terminals
◆ Positive locking
◆ 0.16"(4.00mm) over surface and 0.12"(3mm)
　through air spacing between terminals
◆ 0.264"(6.71mm) grid pattern
◆ With Mtg. ears
◆ Color: Nature
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Voltage rating: 600V AC, DC
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range:
　-40°C ~ ＋125°C
