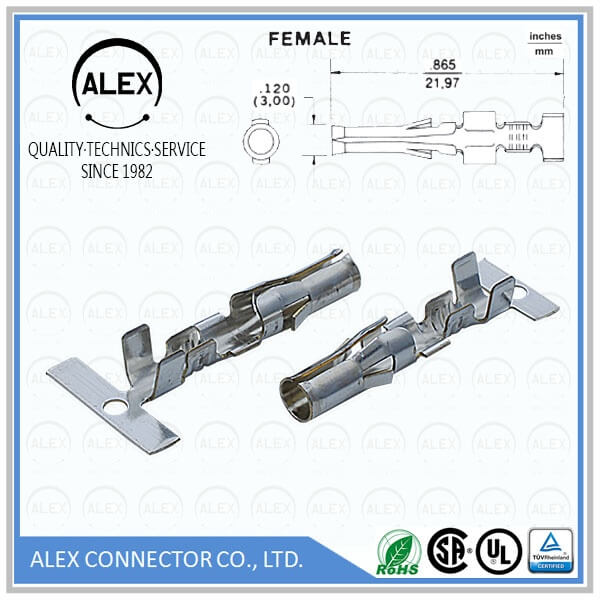

81T
81T

详细介绍

Category : Wire to Wire

Pitch : .264"(6.70mm)

Series : WTW670K

File : Download

Product Features

◆ Material: Tin-Plated Brass
◆ RMS for 60 seconds min. applied between
 adjacent terminals. c
◆ Temperature Rise: 30°C max. for all connectors.
◆ Current Rating: Amperage rating up to
 12 amps on some sizes.
◆ Storage temperature range: -40°C ~ +125°C
◆ Terminal Crimp Strength-Minimum pull-out
 force in pounds (kilograms) for AWG sizes:
 14-35 (15.90)  20-16 ( 6.80)  26-05 ( 2.27)
 16-30 (13.60)  22-10 ( 4.54)  28-03 ( 1.36)
 18-20 ( 9.07)  24-08 ( 3.63)  30-02 ( 0.91)

Series Specifications

◆ Voltage rating: 600V AC, DC
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range:
 -40°C ~ +125°C
