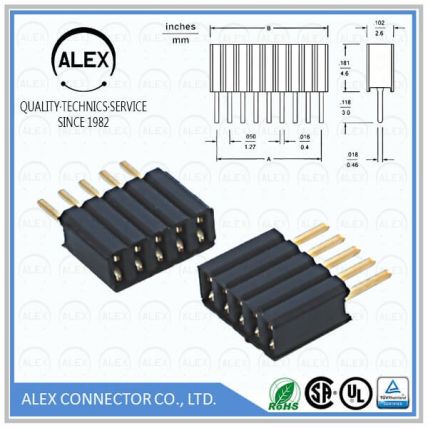

Category : Board to Board

Pitch : .050＂(1.27mm)

Series : BTB1271

File : Download

Product Features

◆ 2 ~ 50 circuits available
◆ Material: Nylon 6T
◆ Gold flash brass
◆ .018"(0.46mm) square pin
◆ Mates with ALEX 9903 Headers
◆ Various pin lengths available

Series Specifications

◆ Current rating: 1A
◆ Voltage rating: 125V
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 100MΩ min.
◆ Withstanding voltage: 250V AC/minute
◆ Temperature range: -40℃ ~ +85℃
　(Including temperature rise)
