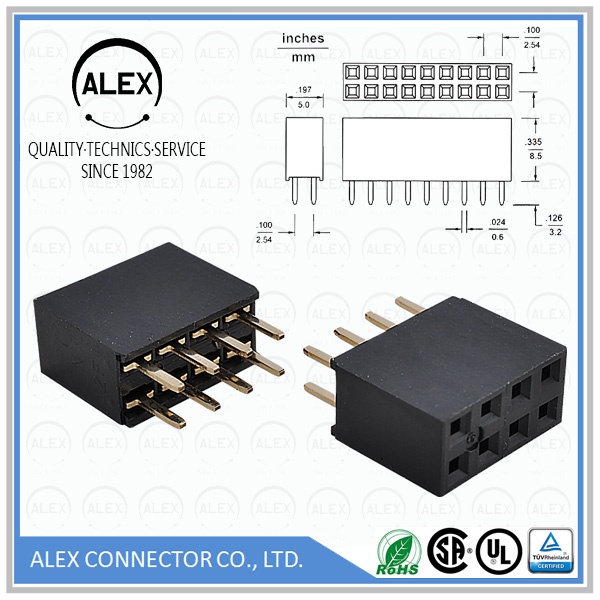

Category : Board to Board

Pitch : .100＂(2.54mm)

Series : BTB2543

File : Download

Product Features

◆ 4 ~ 80 circuits available
◆ Material: PBT, UL 94V-0
◆ Copper alloy
◆ Various pin lengths available
◆ Mates with ALEX 6523 Header

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
　(including temperature rise)
