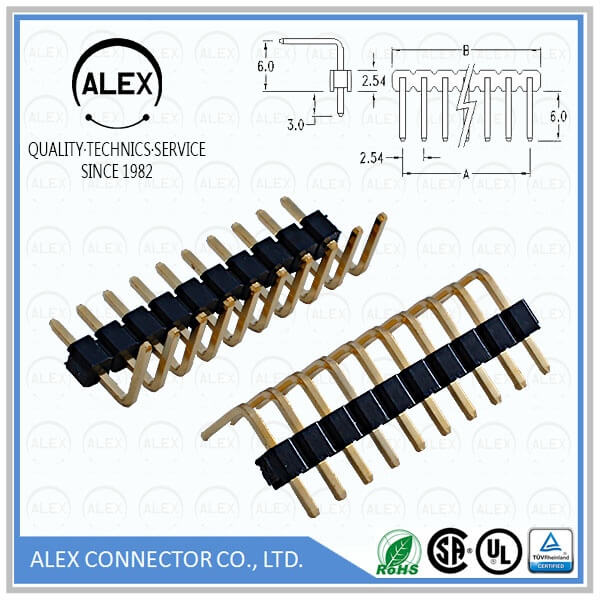

Category : Board to Board

Pitch : .100＂(2.54mm)

Series : BTB2542

File : Download

Product Features

◆ 2 ~ 40 circuits available
◆ Material: PBT (UL 94V-0)
◆ Gold-flash phosphor bronze
◆ Varios pin lengths available
◆ Mates with ALEX 6502, 6503, 6504 Headers

Series Specifications

◆ Current rating: 3A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(including temperature rise)
