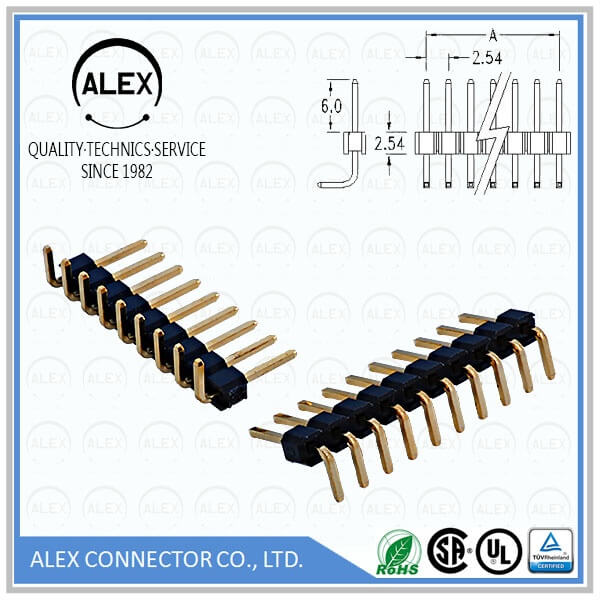

Category : Board to Board

Pitch : .100＂(2.54mm)

Series : BTB2541

File : Download

Product Features

◆ 2 ~ 40 circuits available
◆ Insulator: Nylon 6T
◆ Contact: Brass
◆ Gold flash plated over nickel
◆ 0.025"(0.64mm) square pin
◆ Various pin lengths available
◆ Mates with ALEX 6501 Housing
◆ Mates with 6505, 6506, 6507 Headers

Series Specifications

◆ Current rating: 2.5A max.
◆ Voltage rating: 250V
◆ Dielectric withstanding strength:
　1500V AC/minute
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: 0℃ ~ +75℃
