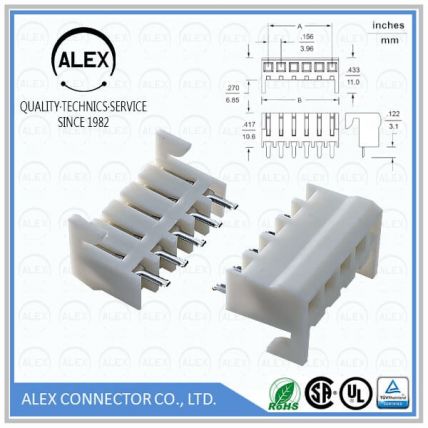

Category : Board to Board

Pitch : .156＂(3.96mm)

Series : BTB3961

File : Download

Product Features

◆ 2 ~ 25 cuircuits available
◆ UL 94V-2 nylon 66
◆ 045"(1.14mm) straight square wire pin
◆ Tin-plated brass pin
◆ Plating options available
◆ Mates with ALEX 8639, 8095 Housings
◆ UL File No.: E114003
◆ CSA File No.: LR86545
◆ TUV File No.: R9854382

Series Specifications

◆ Current rating: 5A max.
◆ Voltage rating: 250V AC
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Insulation resistance: 50KMΩ min.
◆ Contact resistance: 6mΩ Max.
◆ Ambient temperature range: 0°C ~ +75°C
◆ UL File No.: E114003
