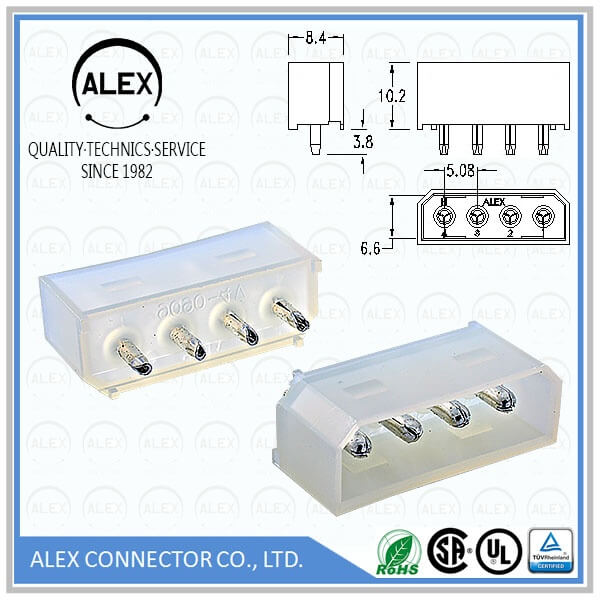

Category : Board to Board

Pitch : .200＂(5.08mm)

Series : BTB508I

File : Download

Product Features

◆ 2 ~ 4 circuits available
◆ Plastic material: UL 94V-2 nylon 66
◆ Pin material: Tin-plated phosphor bronze
◆ Mates with ALEX 6060-N Housing
◆ Mates with ALEX 9090 Headers
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 7A max.
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: -40 ~ +105°C
　(including temperature rise)
