详细介绍

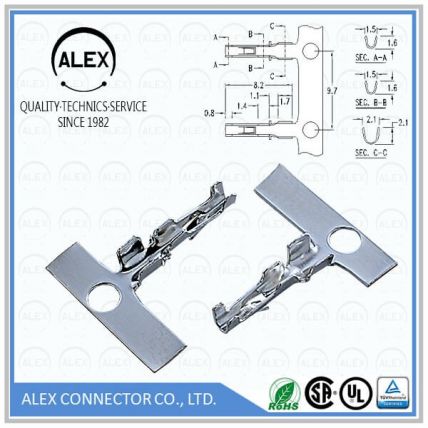

Category : Board-in Terminal

Pitch : .051"(1.30mm)

Series : BIT1300

File : Download

Product Features

◆ Material: Tin-plated phosphor bronze
◆ Wire range: #22 ~ #26 AWG
◆ Recommended P. C. Board hole diameter
 ∅ 1.2+0.08/-0mm
◆ Applicable P. C. Board thickness: 1.57mm
◆ Insulation diameter ∅ 1.3 ~ 1.7 max.

Series Specifications

◆ Secures wire to P. C. Board before wave soldering
◆ Rapid and economical means of hand wring
 P. C. Boards
◆ Wire solders directly to P.C Board
◆ No additional contact resistance
◆ Low profile
