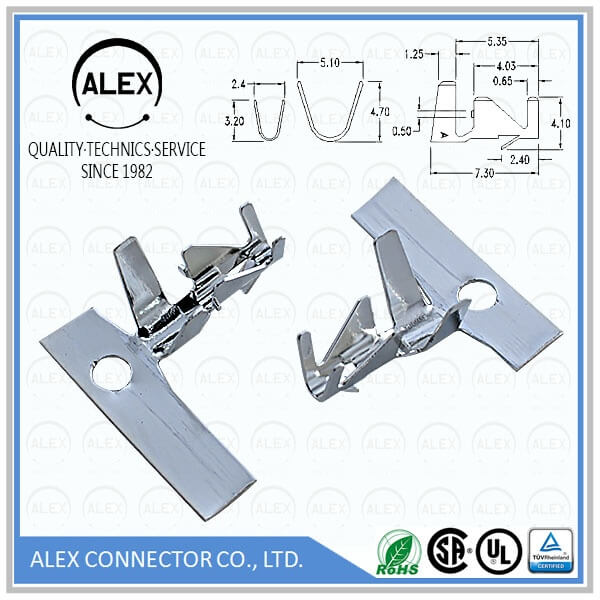

Category : Board-in Terminal

Pitch : .091＂(2.30mm)

Series : BIT2300

File : Download

Product Features

◆ Material: Tin-plated brass or phosphor bronze
◆ Accepts #16 ~ #20 AWG bundle wire range
　(INS. Dia. ∅ 1.6 ~ 3.5mm) or #18 AWG x2 max.
◆ Recommended P.C. Board hole diameter
　∅ 2.3+0.1/-0mm
◆ A maximum protrusion below the P. C. Board of
　3.00mm
◆ Applicable P.C. Board thickness: 1.60mm
◆ Q'ty: 3500pcs/Reel

Series Specifications

◆ Secures wire to P. C. Board before wave soldering
◆ Rapid and economical means of hand wring
　P. C. Boards
◆ Wire solders directly to P.C Board
◆ No additional contact resistance
◆ Low profile
