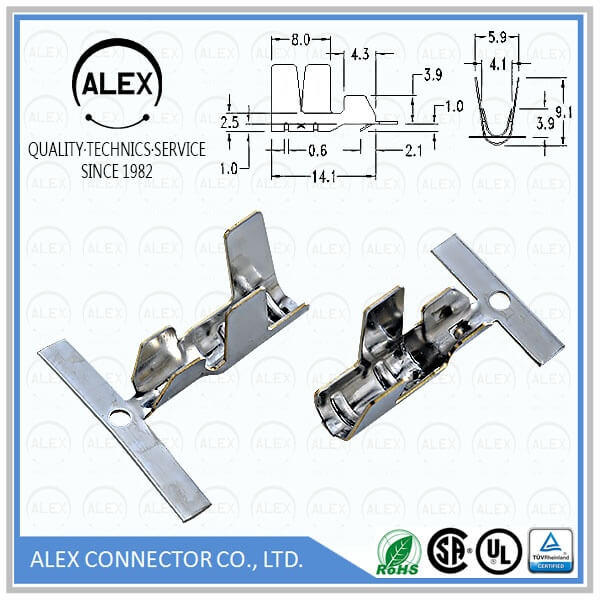

99T
99T

详细介绍

Category : Board-in Terminal

Pitch : .126"(3.20mm)

Series : BIT3200

File : Download

Product Features

◆ Material: Pre-tinned 0.3mm Brass
◆ Accepts wire size #12 ~ #14 AWG or
 bundle with range #18 AWG x 4 Max.
◆ P. C. Board hole diameter ∅ 3.2+0.1/-0mm
◆ A maximum protrusion below the P. C. Board
 of 2.2mm
◆ Applicable P. C. Board thickness: 1.6 mm
◆ Q'ty: 1800pcs/Reel

Series Specifications

◆ Secures wire to P. C. Board before wave soldering
◆ Rapid and economical means of hand wring
 P. C. Boards
◆ Wire solders directly to P.C Board
◆ No additional contact resistance
◆ Low profile
