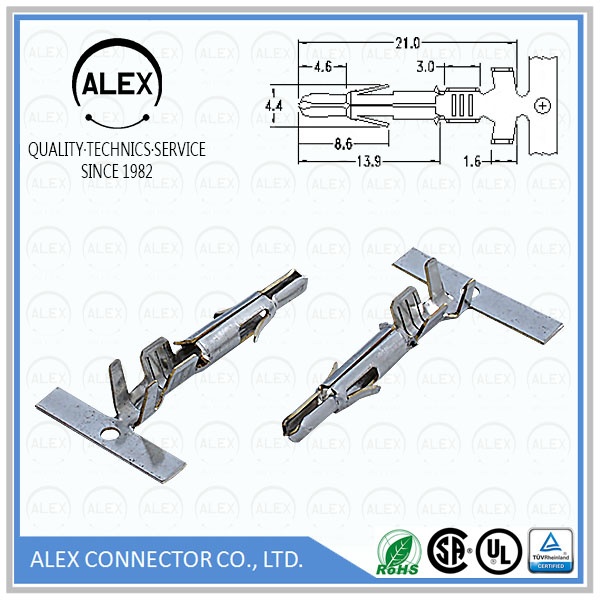

Category : Waterproof Connectors

Pitch : .250＂(6.35mm)

Series : WPF635J

File : Download

Product Features

◆ Material: Brass
◆ Finished: Tin-plated
◆ Wire range: #12 ~ #22 AWG
◆ Used in ALEX 9635-xxP, 9635-xxR housings
　(6 ~ 15 circuits)
◆ Thickness: 0.30mm

Series Specifications

◆ Current rating: 13A(2~4P), 11A(6~15P)
◆ Voltage rating: 600V
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 5000V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
