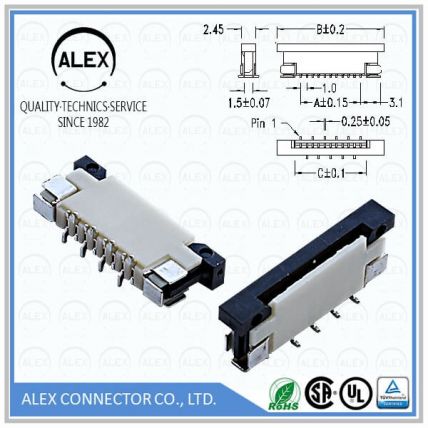

Category : FPC

Pitch : .039＂(1.00mm)

Series : FPC1000

File : Download

Product Features

◆ 4 ~ 34 circuits available
◆ Tin-plated phosphor bronze
◆ Insulator: LCP, UL 94V-0
◆ Slider: PPS UL 94V-0
◆ Me: Brass
◆ Accommodated FFC/FPC thickness: 0.3±0.05mm

Series Specifications

◆ Current rating: 0.5A max.
◆ Voltage rating: 100V AC Max.
◆ Contact resistance: 30mΩ Max.
◆ Accommodated FFC/FPC thickness:
　0.25 ~ 0.35 mm
◆ Insulation resistance: 500MΩ min.
◆ Dielectric withstanding voltage: 500V AC RMS
◆ Temperature range: -40℃ ~ +85℃
　(Including temperature rise)
