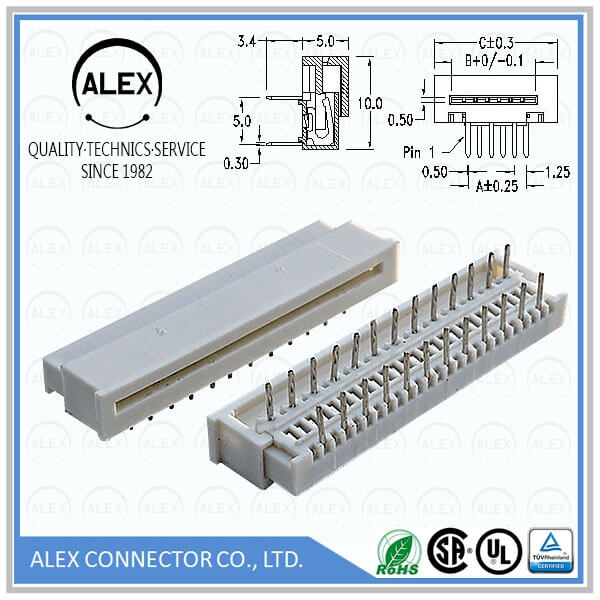

7910-xx-0
7910-xx-0

详细介绍

Category : FPC

Pitch : .049"(1.25mm)

Series : FPC1250

File : Download

Product Features

◆ 3 ~ 40 circuits available
◆ Material: 30% Glass filled P.B.T UL 94V-0
◆ Tin-plated phosphor bronze
◆ Packing: Tube

Series Specifications

◆ Current rating: 1A max.
◆ Contact resistance: 20mΩ Max. at DC 100mA
◆ Insulation resistance: 1000MΩ Min.
 at DC 500V
◆ Dielectric withstanding voltage:
 500V AC/minute
◆ Temperature range: -55℃ ~ +105℃
 (Including temperature rise)
