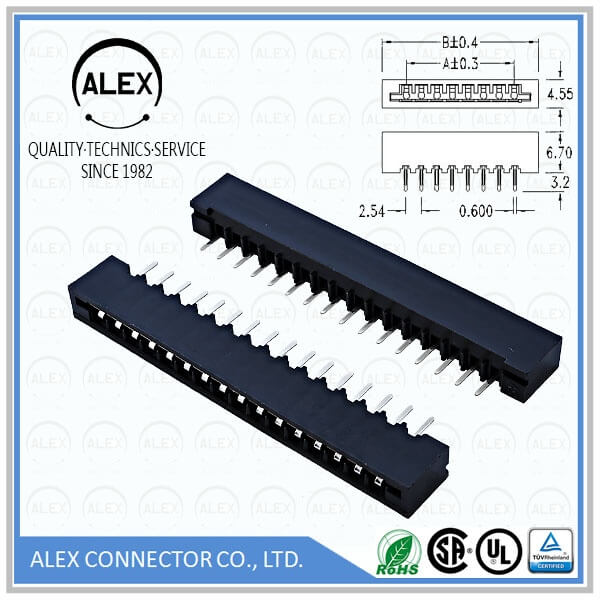

Category : FPC

Pitch : .100＂(2.54mm)

Series : FPC2540

File : Download

Product Features

◆ 2 ~ 27 circuits available
◆ Material: PBT + 25% GF (UL 94V-0)
◆ Tin-plated phosphor bronze
◆ Packing: Tube

Series Specifications

◆ Current rating: 1A Max.
◆ Voltage rating: 250V AC RMS.
◆ Contact resistance: 25mΩ Max.
◆ Insulation resistance: 5000MΩ Min.
◆ Dielectric withstanding voltage:
　1000V AC RMS 60Hz / mimute
◆ Durability: 20 cycles
◆ Temperature range: -40℃ ~ +105℃
　(Including temperature rise)
