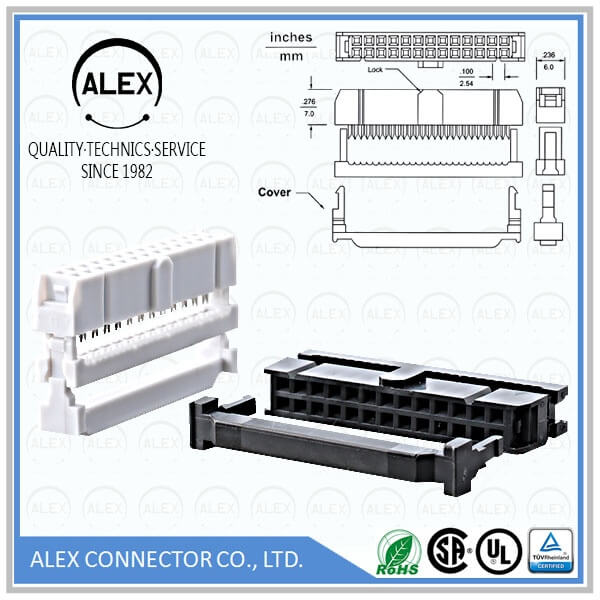

Category : IDC

Pitch : .100＂(2.54mm)

Series : IDC2542

File : Download

Product Features

◆ 6 ~ 64 circuits available
◆ Material: PBT Polyester, UL 94V-0
◆ Pin material: Brass
◆ Finished: Gold-flash in contact area,
　other: nickel plated
◆ Accepts AWG #26 ~ #28 flat ribbon cable
◆ Mates with ALEX 4700-N, 4701-N, 4702-N Headers

Series Specifications

◆ Current rating: 1A DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 30mΩ max.
◆ Insulation resistance: 3000MΩ min.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
◆ UL File No.: E114003
